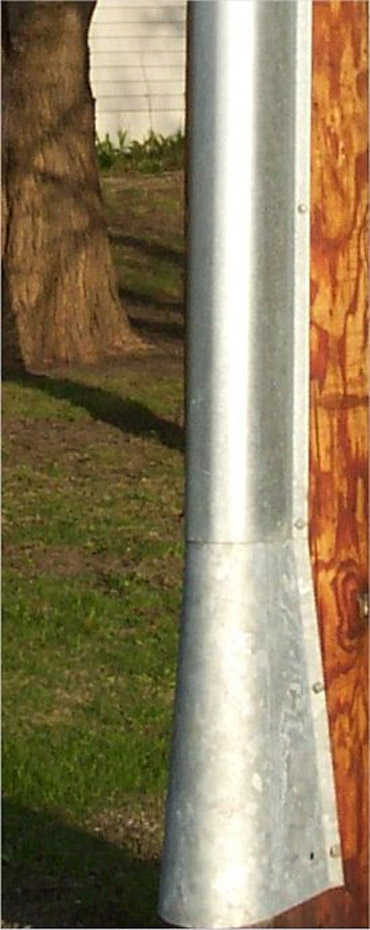

U-Guard™ Adapters – Steel
Conduit to U-Guards™

EMC Steel Adapters are dual-purpose accessories to EMC's U-Guards™ for use when underground cables are in conduit at the pole. First they shroud the conduit riser and couple the Plastic U-Guard™ or Steel U-Guard™. Second, they provide a protected air inlet for venting the U-Guard™ riser. This chimney effect venting eliminates the necessity for cable re-rating because of elevated temperatures in the riser.

Specifications / Ordering Information:

U-Guard™ Size Maximum Conduit Size
1" 3 1/2"
2" 5"
3" 5"
4" 6"
5" 6"
6" 8"
7" 6"

We also manufacture Plastic and Steel U-Guards™ plus a large selection of accessories including; Steel and Plastic Adapters, Back Plates and Fasteners.
