Pole Mounted Straps

Heavy duty galvanized and aluminum conduit mounting straps for the installation of pole mounted conduit.

Features:

• 9/32" hole size.

• Thickness – 12 gauge.

• Hot dip galvanized after forming.

Hot Dip Galvanized

Catalog Number Conduit Nominal IN Conduit O.D.

"D"
Strap I.D.

"B" Flange Width
50-3/4 HD 3/4" 1 1/16" 1 1/16" 17/32" 1"
50-1USPHD 1" 1 5/16" 1 5/16" 11/16" 1"
50-1.5USPHD 1 1/2" 1 29/32" 1 29/32" 11/16" 1"
50-2USPHD 2" 2 3/8" 2 3/8" 1 1/4" 1"
50-275HD 2 1/2" 2 7/8" 2 7/8" 1 1/2" 1"
50-3USPHD 3" 3 1/2" 3 1/2" 1 13/16 1 1/2"
50-4USPHD 4" 4 1/2" 4 1/2" 2 5/16" 1 1/2"
50-5USPHD 5" 5 9/16" 5 9/16" 2 9/16" 1 1/2"
50-6USPHD 6" 6 5/8" 6 5/8" 3 3/8" 1 1/2"

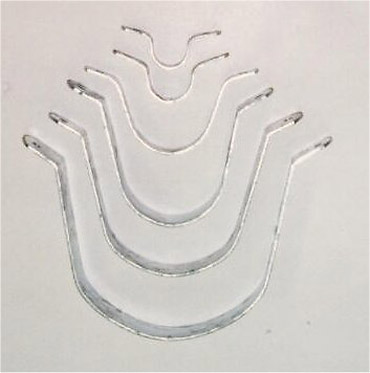

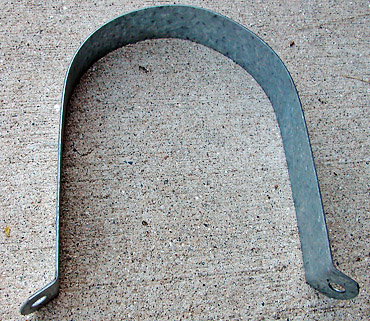

Pole Mounted Strap
Pole Mounted Straps
